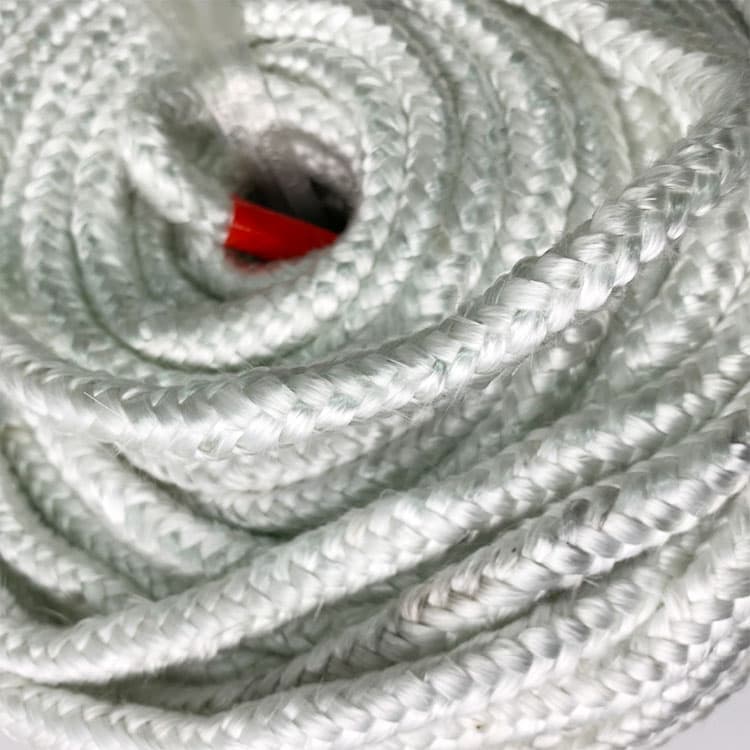

Aohong HD-GFR Series: Advanced Glass Fiber Rope Solutions for Extreme Environments

Steel Mill Tough: Why 540°C Demands Aohong’s Glass Fiber Rope

After watching standard ropes fail in ladle covers, we engineered something different: Aohong’s high-density glass fiber rope isn’t just packing material – it’s the last line of defense between molten steel and disaster.

“That batch with 11.9 micron fibers? Failed at 550°C. Now we hold ±0.3% diameter tolerance like our lives depend on it.”

🧪 Material Science That Holds the Line

Our secret recipe for glass fiber rope that won’t quit:

✓ E-CR grade fibers – laughs at chemical attacks
✓ 1.2-1.8% silane coupling – bonds like weld to metal surfaces
✓ 0% resin content – stays flexible when others turn brittle

⚙️ Braiding That Bites Back

Construction

Precision

• 32-strand muscle

• 95±2% packing density

• 15° braid angle

• 9-13 micron fibers

🔥 Thermal Warrior

• 540°C continuous service
• <0.3% shrinkage at 600°C
• 0.038 W/m·K conductivity

💪 Mechanical Beast

• 18-22 kN breaking load
• 50,000+ abrasion cycles
• 2.8-3.2% smart stretch

“Always pack joints wet – dry fibers grab unevenly and leave hot spots.”
Furnace Foreman, Ohio Steelworks

🔍 Quality Control That Doesn’t Blink

✓ X-ray fluorescence – we caught 3 batches with 0.4% calcium drift last quarter
✓ 10x magnification inspection – spots flaws invisible to naked eyes
✓ Digital tension torture tests – because real steel doesn’t forgive

🏭 Where Our Rope Earns Its Keep

Steel Industry

• Ladle covers taking 1,600°C splashes
• Furnace door seals that last 6+ months

Power Plants

• Boiler expansion joints at 540°C
• Turbine packing that survives startups

Chemical Processing

• Reactor flange gaskets (ASME B16.20)
• Acid-resistant pump packing

Standard Rope

Aohong Rope

Max temperature

540°C continuous

Breaking load

22 kN for 12mm

Diameter control

±0.3% tolerance

Chemical resistance

E-CR grade fibers

Bottom line: When your glass fiber rope faces molten metal and thermal shock daily, “good enough” fails during third shift. Ours holds the line.

ISO 3341 Certified
ASME B16.20 Compliant
ASTM D297 Verified
